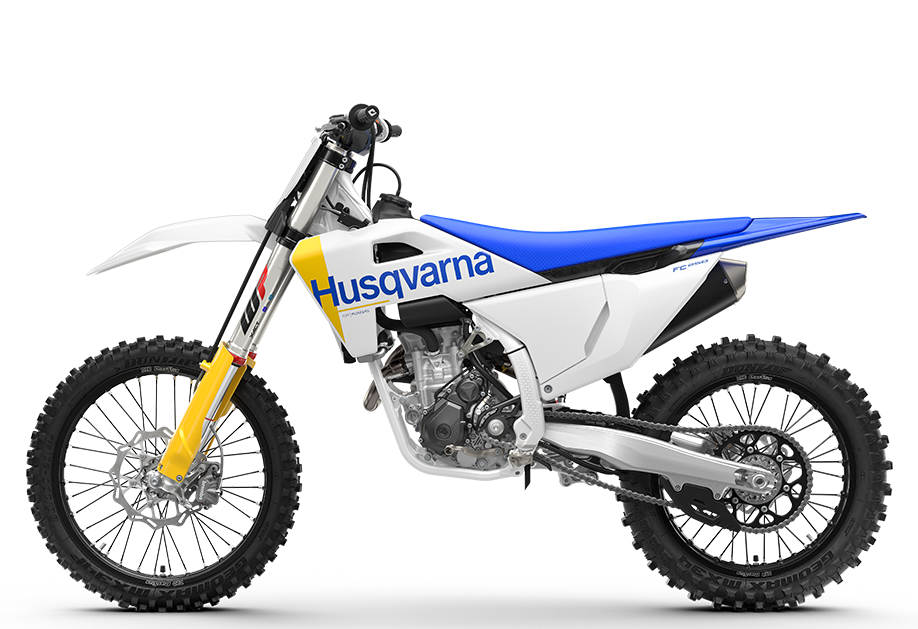

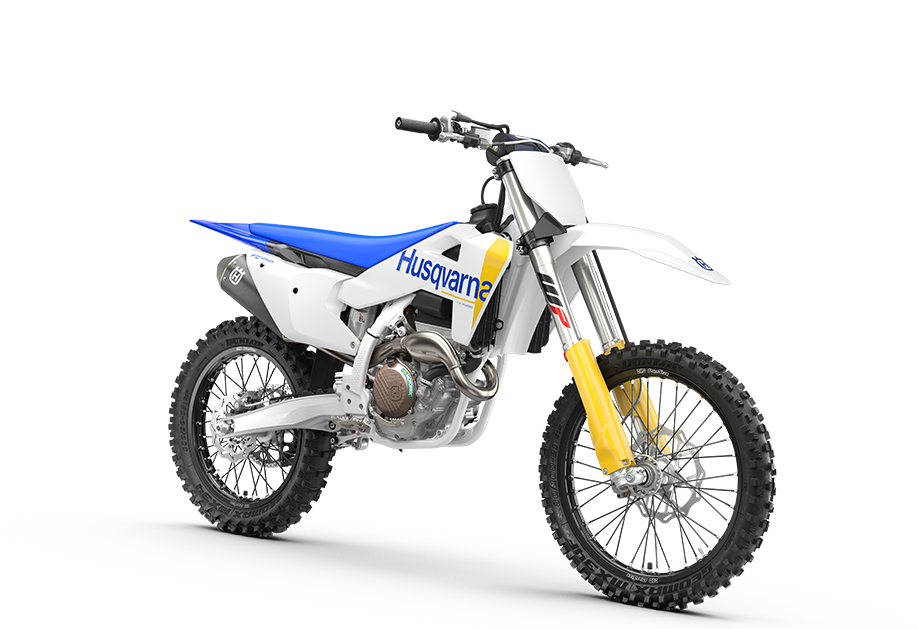

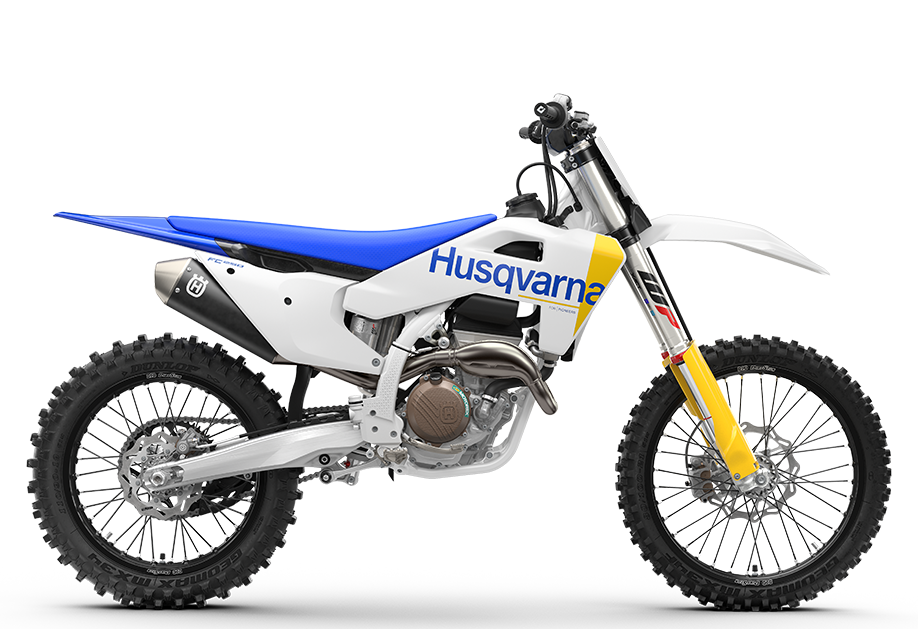

FC 250

Base MSRP: 10,799.00 USD*

*Plus freight: $690. Closed-course competition use only.

With titles in the MX2 World Championship and AMA Supercross series to its name, the FC 250 is recognised as a highly competitive machine. Designed for motocross racing at every level, each component is selected for its performance and durability. Riders can take advantage of cutting-edge technology to gain an edge over their rivals with Traction Control, a Quickshifter, and a choice of engine maps elevating the on-track experience. Its compact and powerful DOHC engine plays a vital role in how the FC 250 handles, as its placement within the chromium molybdenum frame centralises mass to enhance agility. Completing the build, quality parts from WP, D.I.D, Dunlop, ProTaper, Twin Air, and ODI highlight the premium specification of the FC 250.

Engine

Primary drive24:72
Transmission5-speed
Battery capacity2 Ah
CoolingLiquid cooled
Secondary gear ratio14:51
StarterElectric starter
Stroke48.5 mm
Bore81 mm
ClutchWet multi-disc DS clutch, Brembo hydraulics
Compression ratio14.5
Displacement249.9 cm³
EMSKeihin EMS
Design1-cylinder, 4-stroke engine
Fuel-mixture generationKeihin EFI, throttle body 44 mm

Chassis

Weight (without fuel)101.7 kg
Tank capacity (approx.)7.2 l
Wheelbase1490 mm
Front brake disc diameter260 mm
Rear brake disc diameter220 mm
Front brakeDisc brake
Rear brakeDisc brake
Chain520, Non-sealed
Frame designCentral double-cradle-type 25CrMo4 steel
Front suspensionWP XACT-USD, Ø 48 mm
Ground clearance336 mm
HandlebarPro Taper, aluminum Ø 28/22 mm
Rear suspensionWP XACT Monoshock with linkage
Seat height946 mm
Silenceraluminum
Steering head angle63.9 °
Rear subframe designAluminum-reinforced polyamide
Suspension travel (front)305 mm
Suspension travel (rear)293 mm
Tyre dimensions (front/rear)80/100; 110/90
Wheels1.6 x 21"; 2.15 x 19"
WheelsSpoked wheels with aluminum rims
Wheelbase1490 ± 10 mm
