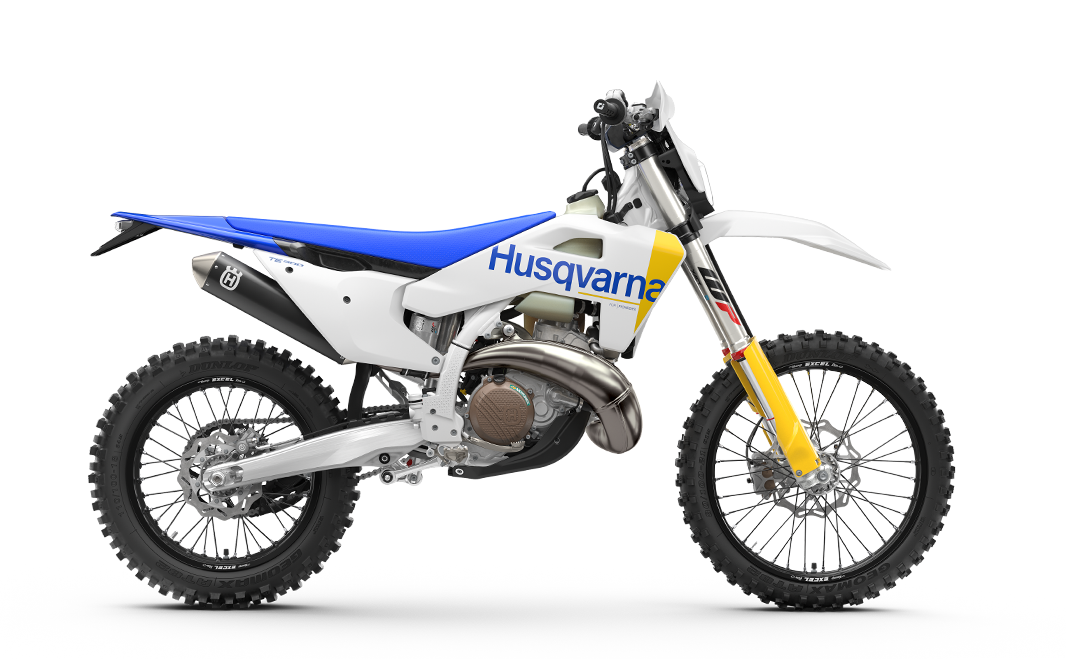

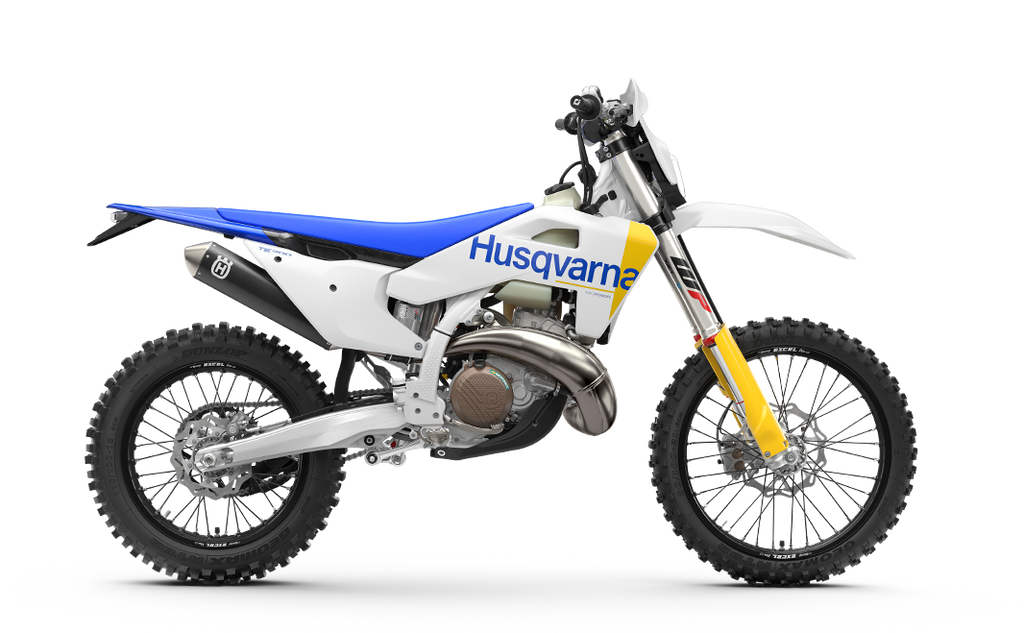

TE 300

Base MSRP: 12,049.00 USD*

*Plus freight: $690. Closed-course competition use only.

Known globally as an exceptionally capable machine, particularly in the world of hard enduro, the TE 300 sets a benchmark for offroad performance. With a class-leading engine fuelled by Throttle Body Injection (TBI) for controllable power, the versatile model is capable of scaling the toughest of climbs with ease. Aiding the riding experience is the plush WP suspension which, together with a modern and compliant chassis, provides maximum comfort across all types of terrain. Aboard the TE 300, you can explore where few have gone before.

Technical Details

Engine

Primary drive26:72
Transmission6-speed
Battery capacity2 Ah
CoolingLiquid cooled
Secondary gear ratio14:50
StarterElectric starter
Stroke72 mm
Bore72 mm
ClutchWet, DDS multi-disc clutch, Brembo hydraulics
Displacement293.2 cm³
EMSVitesco Technologies EMS
Design1-cylinder, 2-stroke engine
Fuel-mixture generationKeihin EFI, throttle body 39 mm

Chassis

Weight (without fuel)106.8 kg
Tank capacity (approx.)8.0 l
Wheelbase1489 mm
Front brake disc diameter260 mm
Rear brake disc diameter220 mm
Chain520 X-Ring
Frame designCentral double-cradle-type 25CrMo4 steel
Front suspensionWP XACT cartridge Ø 48 mm
Ground clearance343 mm
HandlebarPro Taper, aluminum Ø 28/22 mm
Rear suspensionWP XACT Monoshock with linkage
Seat height952 mm
Silenceraluminum
Steering head angle63.9 °
Rear subframe designAluminum-reinforced polyamide
Suspension travel (front)300 mm
Suspension travel (rear)300 mm
Tyre dimensions (front/rear)80/100; 110/100
Wheels1.60 x 21"; 2.15 x 18"
WheelsSpoked wheels with aluminum rims
Wheelbase1489 ± 10 mm
