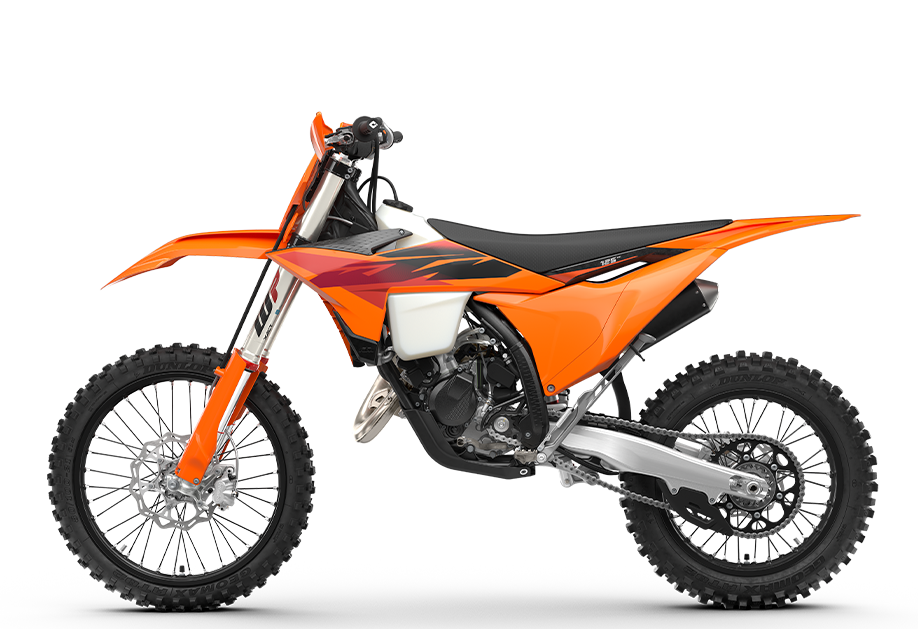

2027 KTM® 125 XC Motorcycle
Year

Pick up available

Usually ready in 24 hours

Graham KTM

Usually ready in 24 hours

2027 KTM 125 XC

  • Base MSRP:

    8,499.00 USD*

*Plus freight: $690. Closed-course competition use only.

HERE COMES THE 'BRAAAP!'

Years of hard‑charging Racing and Development have shaped the KTM 125 XC into one of the most aggressive 2‑stroke weapons in GNCC competition. Light, responsive, and built to be ridden flat‑out, the KTM 125 XC defines what a modern XC screamer should be.

Key Features

• SKU/Model Number: 125 XC

• 125cc 2-stroke engine delivering high-revving performance and responsive throttle for cross country racing

• Cross country motorcycle platform designed for GNCC racing, woods riding, and off-road competition

• 6-speed transmission optimized for versatile performance across varied terrain

• Electronic fuel injection system for consistent power delivery and improved efficiency

• WP suspension system tuned for high-speed stability and technical off-road control

• Lightweight chromoly steel frame for durability and agile handling

• Hydraulic disc braking system for strong and reliable stopping power

• Ergonomic, race-focused bodywork for improved rider movement and control during long races

• Larger fuel tank capacity suited for endurance racing and cross country events

• Dry Weight: Not specified by manufacturer

Why It’s a Smart Pick

The KTM® 125 XC (2027) is an excellent choice for riders focused on cross country racing and high-performance off-road riding. Its lightweight chassis, high-revving 2-stroke engine, and race-ready components make it ideal for GNCC competition, fast trail riding, and endurance events where agility, speed, and control are essential.

Technical Specifications

2027 KTM 125 XC

Engine

Design
1-cylinder, 2-stroke engine
Displacement
124.8 cm³
Transmission
6-speed
Fuel-mixture generation
Keihin EFI, throttle body 39 mm
EMS
Vitesco Technologies EMS
Clutch primary drive teeth
73
Primary drive
23:73
Clutch
Wet multi-disc DS clutch, Brembo hydraulics
Engine cylinder
Single cylinder
Engine stroke
2-Stroke

Chassis

Frame design
Central double-cradle-type 25CrMo4 steel
Front brake
Disc brake
Rear brake
Disc brake
Rear subframe design
Aluminum-reinforced polyamide
Chain
520 X-Ring

Suspension

Front suspension
WP XACT cartridge Ø 48 mm
Rear suspension
WP XACT Monoshock with linkage
Suspension travel (front)
300 mm
Suspension travel (rear)
300 mm
Suspension travel (front)
11.81 inch
Suspension travel (rear)
11.81 inch

Dimensions

Seat height
954 mm
Ground clearance
359 mm
Ground clearance
14.13 inch
Tank capacity (approx.)
9 l
Tank capacity (approx.)
2.38 US gal
Weight (without fuel)
94.8 kg
