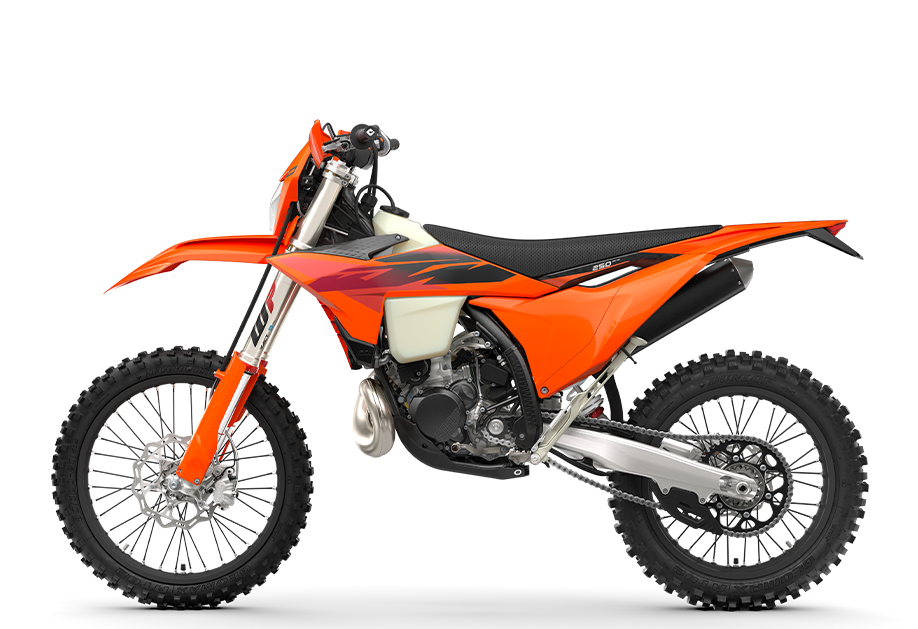

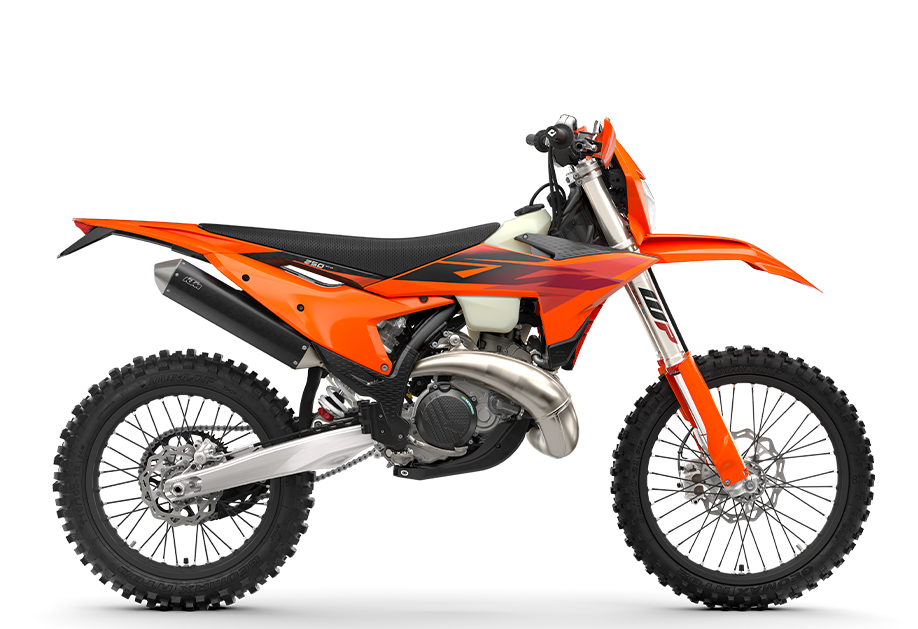

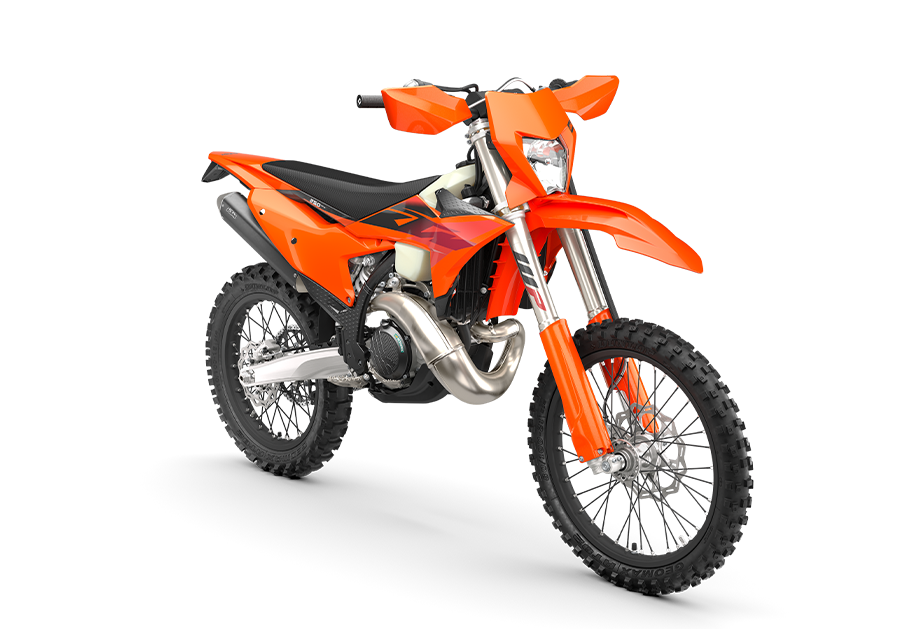

2027 KTM 250 XC-W
2027 KTM 250 XC-W
-
Base MSRP:
11,549.00 USD*
*Plus freight: $690. Closed-course competition use only.
RACE TO NEW HEIGHTS
The KTM 250 XC-W presents enduro riders with the ultimate combination of power and rideability, setting the benchmark in the highly contested E1 class. Thanks to its groundbreaking frame, updated closed-cartridge suspension, and epic TBI technology, it remains an extreme machine that continues to reach new heights. How far you push, though, is up to you.
Engine
Design
1-cylinder, 2-stroke engine
Displacement
249 cm³
Transmission
6-speed
Fuel-mixture generation
Keihin EFI, throttle body 39 mm
EMS
Vitesco Technologies EMS
Clutch primary drive teeth
72
Primary drive
26:72
Clutch
Wet, DDS multi-disc clutch, Brembo hydraulics
Engine cylinder
Single cylinder
Engine stroke
2-Stroke
Chassis
Frame design
Central double-cradle-type 25CrMo4 steel
Front brake
Disc brake
Rear brake
Disc brake
Rear subframe design
Aluminum-reinforced polyamide
Chain
520 X-Ring
Suspension
Front suspension
WP XACT-USD, Ø 48 mm
Rear suspension
WP XPLOR shock absorber with PDS
Suspension travel (front)
300 mm
Suspension travel (rear)
310 mm
Suspension travel (front)
11.81 inch
Suspension travel (rear)
12.2 inch
Front suspension adjustment
Compression and rebound adjustable
Rear suspension adjustment
Compression and rebound adjustable, Preload Adjuster
Dimensions
Seat height
963 mm
Ground clearance
347 mm
Ground clearance
13.66 inch
Tank capacity (approx.)
9 l
Tank capacity (approx.)
2.38 US gal
Weight (without fuel)
104.4 kg
