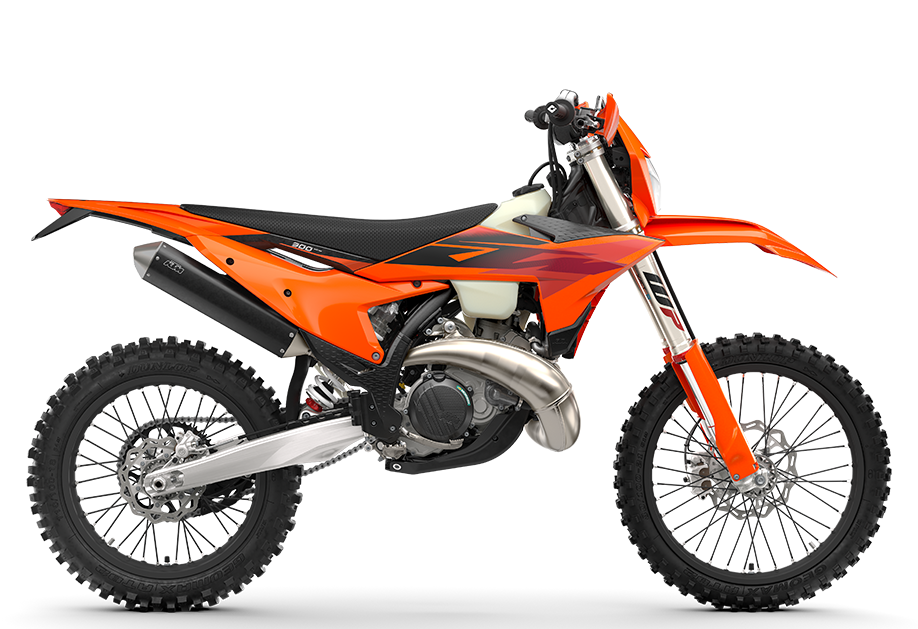

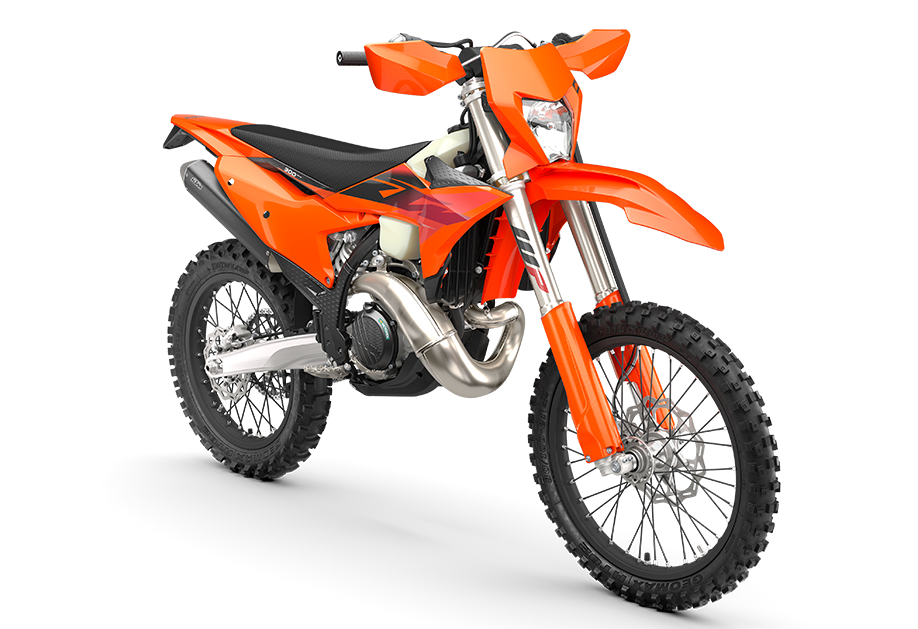

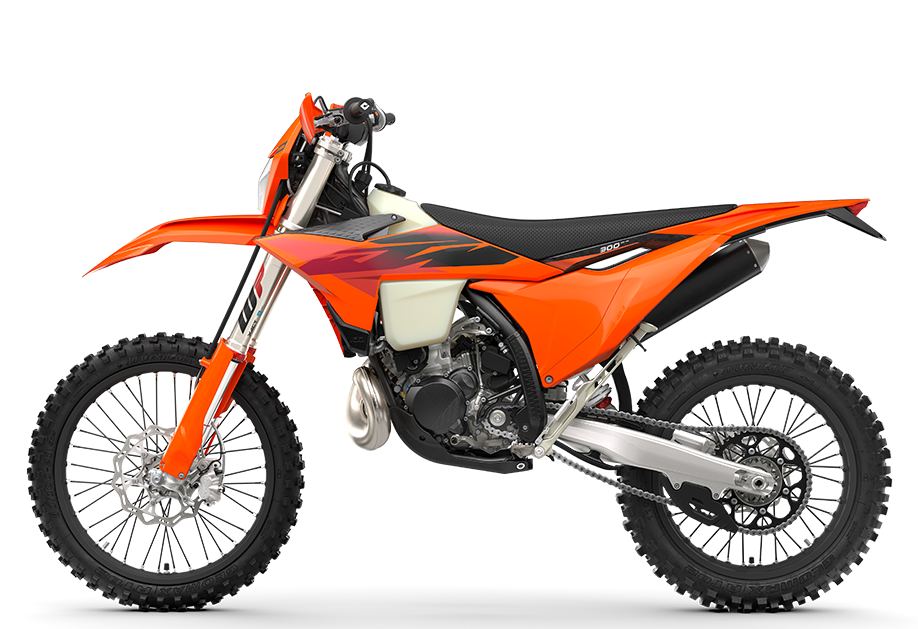

2027 KTM 300 XC-W
-
Base MSRP:
11,949.00 USD*
*Plus freight: $690. Closed-course competition use only.
LEGENDARY ENDURO
The KTM 300 XC-W maintains legendary status as the undisputed King of enduro. Not only does it have the most recognized title at the sharp end of hard enduro, it's still unmatched when it comes to 2-stroke ingenuity, fury, and downright fun. With a bulletproof, fuel-injected 2-stroke engine churning out masses of low-down torque and top-end fury, it's the ideal companion when tackling challenging terrain.
Engine
Design
1-cylinder, 2-stroke engine
Displacement
293.15 cm³
Transmission
6-speed
Fuel-mixture generation
Keihin EFI, throttle body 39 mm
EMS
Vitesco Technologies EMS
Clutch primary drive teeth
72
Primary drive
26:72
Clutch
Wet, DDS multi-disc clutch, Brembo hydraulics
Engine cylinder
Single cylinder
Engine stroke
2-Stroke
Chassis
Frame design
Central double-cradle-type 25CrMo4 steel
Front brake
Disc brake
Rear brake
Disc brake
Rear subframe design
Aluminum-reinforced polyamide
Chain
520 X-Ring
Suspension
Front suspension
WP XACT-USD, Ø 48 mm
Rear suspension
WP XPLOR shock absorber with PDS
Suspension travel (front)
300 mm
Suspension travel (rear)
310 mm
Suspension travel (front)
11.81 inch
Suspension travel (rear)
12.2 inch
Front suspension adjustment
Compression and rebound adjustable
Rear suspension adjustment
Compression and rebound adjustable, Preload Adjuster
Dimensions
Seat height
963 mm
Ground clearance
347 mm
Ground clearance
13.66 inch
Tank capacity (approx.)
9 l
Tank capacity (approx.)
2.38 US gal
Weight (without fuel)
104.4 kg
