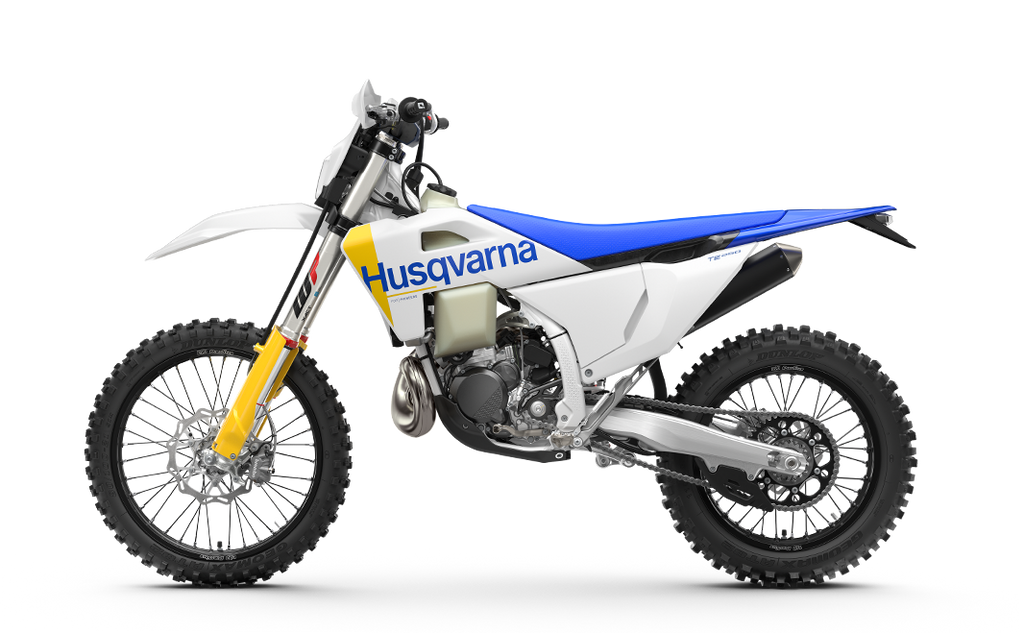

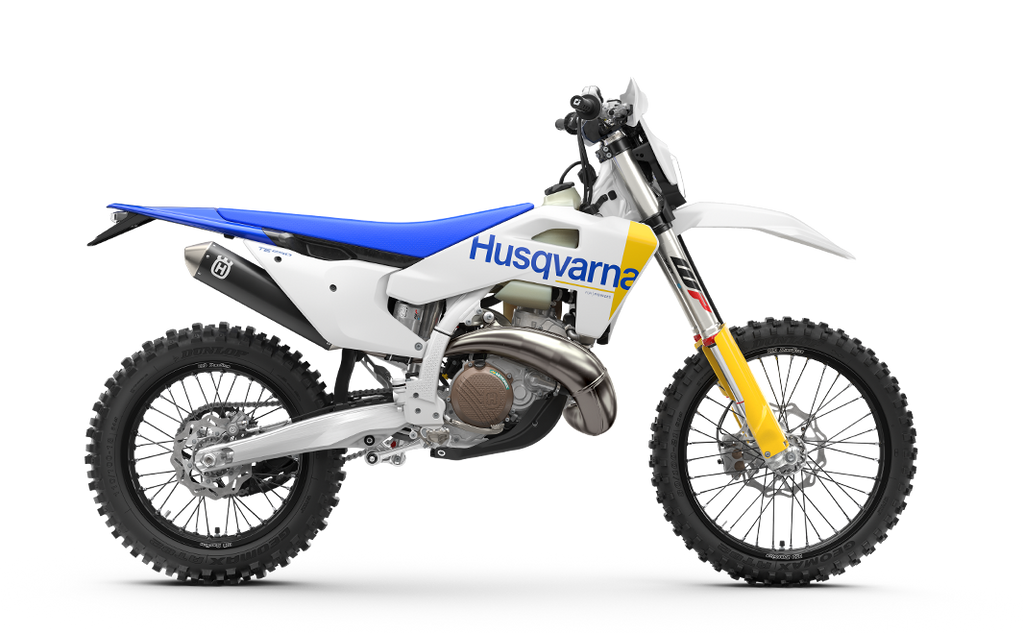

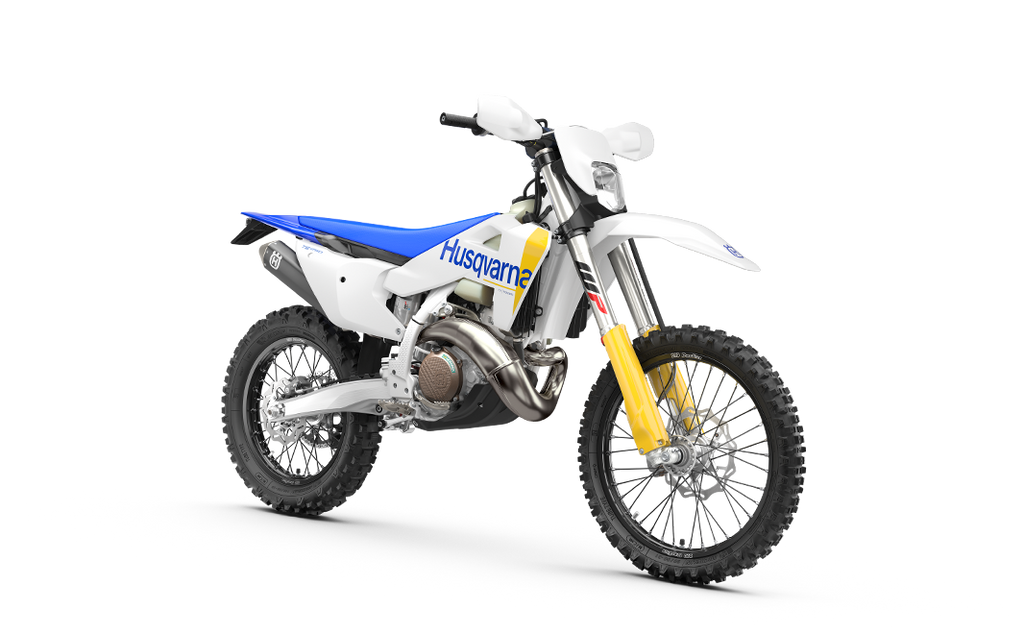

TE 250

Base MSRP: 11,699.00 USD*

*Plus freight: $690. Closed-course competition use only.

Being lightweight, versatile, and easy to maintain makes the TE 250 a popular model in the world of enduro. This competition-focused machine allows riders of all abilities to compete to their full potential, as the TE 250 delivers unrivalled performance in all conditions. With its engine fueled using an advanced Throttle Body Injection (TBI) system, class-leading torque is created, which ensures technical obstacles and climbs can be mastered with ease. Race-tested components headline the build quality of the TE 250, which is expertly assembled with WP suspension, Brembo brakes, ProTaper handlebars, ODI grips, and Dunlop tires.

Technical Details

Engine

Primary drive26:72
Transmission6-speed
Battery capacity2 Ah
CoolingLiquid cooled
Secondary gear ratio13:50
StarterElectric starter
Stroke72 mm
Bore66.4 mm
ClutchWet, DDS multi-disc clutch, Brembo hydraulics
Displacement249.0 cm³
EMSVitesco Technologies EMS
Design1-cylinder, 2-stroke engine
Fuel-mixture generationKeihin EFI, throttle body 39 mm

Chassis

Weight (without fuel)106.8 kg
Tank capacity (approx.)8.5 l
Wheelbase1489 mm
Front brake disc diameter260 mm
Rear brake disc diameter220 mm
Chain520 X-Ring
Frame designCentral double-cradle-type 25CrMo4 steel
Front suspensionWP XACT cartridge Ø 48 mm
Ground clearance354 mm
HandlebarPro Taper, aluminum Ø 28/22 mm
Rear suspensionWP XACT Monoshock with linkage
Seat height952 mm
Silenceraluminum
Steering head angle63.9 °
Rear subframe designAluminum-reinforced polyamide
Suspension travel (front)300 mm
Suspension travel (rear)300 mm
Tyre dimensions (front/rear)80/100; 110/100
Wheels1.60 x 21"; 2.15 x 18"
WheelsSpoked wheels with aluminum rims
Wheelbase1489 ± 10 mm
