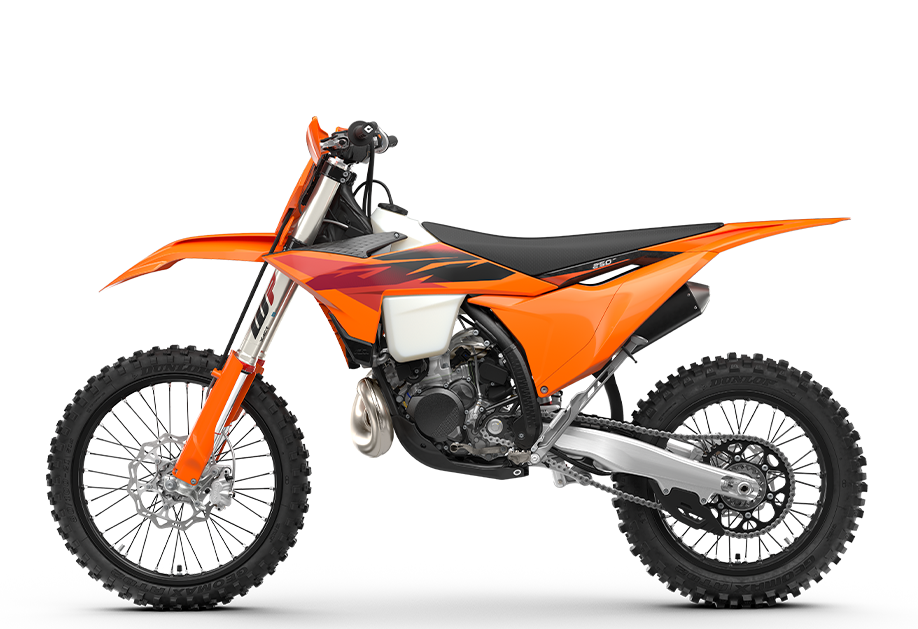

2027 KTM 250 XC
-
Base MSRP:
11,549.00 USD*
*Plus freight: $690. Closed-course competition use only.
CROSS COUNTRY LEGEND
At the forefront of cross-country racing, the KTM 250 XC sets a benchmark for performance. With one of the most powerful engines in its class, it features precision-tuned suspension, a refined chassis, and an optimized airbox for maximum airflow. The result? Razor-sharp handling, responsive power delivery, and race-winning capability. The KTM 250 XC isn't just ready for the challenge -- it's built to carry its legendary legacy forward in the cross-country arena.
Engine
Design
1-cylinder, 2-stroke engine
Displacement
249 cm³
Transmission
6-speed
Fuel-mixture generation
Keihin EFI, throttle body 39 mm
EMS
Vitesco Technologies EMS
Clutch primary drive teeth
72
Clutch
Wet, DDS multi-disc clutch, Brembo hydraulics
Engine cylinder
Single cylinder
Engine stroke
2-Stroke
Chassis
Frame design
Central double-cradle-type 25CrMo4 steel
Front brake
Disc brake
Rear brake
Disc brake
Rear subframe design
Aluminum-reinforced polyamide
Chain
520 X-Ring
Suspension
Front suspension
WP XACT Closed Cartridge Ø 48 mm
Rear suspension
WP XACT Monoshock with linkage
Suspension travel (front)
300 mm
Suspension travel (rear)
300 mm
Suspension travel (front)
11.81 inch
Suspension travel (rear)
11.81 inch
Front suspension adjustment
Compression (high and low speed), rebound
Rear suspension adjustment
Preload adjuster
Dimensions
Seat height
954 mm
Ground clearance
354 mm
Ground clearance
13.94 inch
Tank capacity (approx.)
9 l
Tank capacity (approx.)
2.38 US gal
Weight (without fuel)
101.8 KG
