KTM SXE5
$6,199.00 USD
Year

Pick up available

Usually ready in 24 hours

Graham KTM

Usually ready in 24 hours

LEADING THE CHARGE

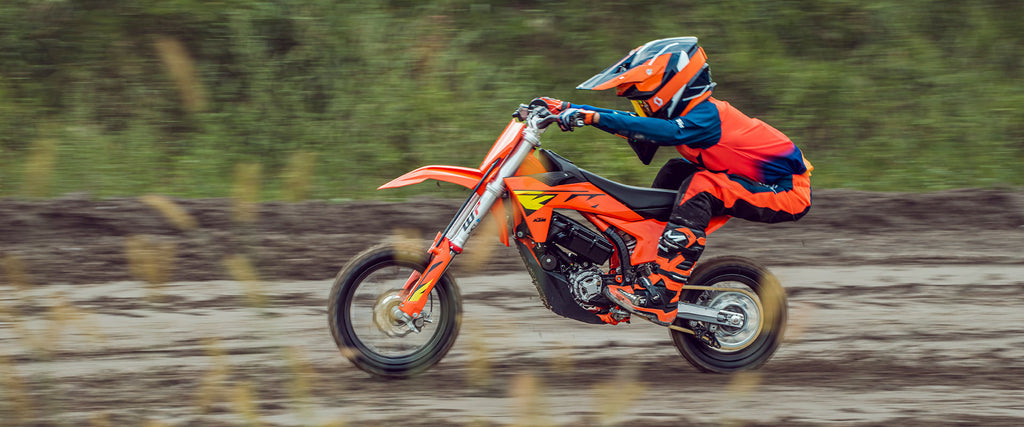

The KTM SX-E 5 represents the latest generation of advanced all-electric mini-crossers, aimed at both beginner and competitive junior racers. Setting the benchmark in adjustable ergonomics, the KTM SX-E 5 is a high-quality, real-world READY TO RACE alternative to the gas-powered 50 cc engine. The KTM SX-E 5 is not a toy: this is a bona fide platform for juniors who are finding all the joys of having a throttle in their right hand without the complications of emissions, complex maintenance, and noise. Whether riding, practicing, or racing, the fresh KTM SX-E 5 is both everything they ever wanted and everything they'll ever need - proudly designed, developed, and produced in Austria.

Technical Specifications

2027 KTM SX-E 5

Engine

Electric motor
48 V - BLDC motor with outer rotor
Max. power
5 kW / 3,900 rpm
Torque
13.8 Nm
Max. motor speed
6000 rpm
Battery capacity
21 Ah
Charging time 100 %
70 min.
Rated output
2 kW / 3,200 rpm
Secondary gear ratio
8:46
Traction battery
Lithium-Ion KTM PowerPack
Charger line voltage
80-240 V/50-60 Hz
Charging power
900 W
Charging time 80 %
45 min.

Chassis

Frame design
Chrome-molybdenum steel central-tube frame
Rear subframe design
Glass fiber reinforced plastic
Handlebar
Tapered aluminum Ø 28/22/18 mm
Front brake
Disc brake
Rear brake
Disc brake
Front brake disc diameter
160 mm
Rear brake disc diameter
160 mm
Brake disc diameters (front/rear)
160 / 160 mm
Wheels
1.5 x 12"; 1.6 x 10"
Tyre width (front)
60
Tyre height (front)
100
Tyre width (rear)
2.75
Chain
415, Non-sealed
Steering head angle
66 °

Suspension

Front suspension
XACT 35 WP Upside-Down fork, Ø 35 mm
Rear suspension
XACT WP mono shock
Suspension travel (front)
205 mm
Suspension travel (rear)
193 mm
Steering head angle
66 °
Fork offset
22 mm

Dimensions

Seat height
682 mm
Wheelbase
1028 ± 10 mm
Ground clearance
259 mm
